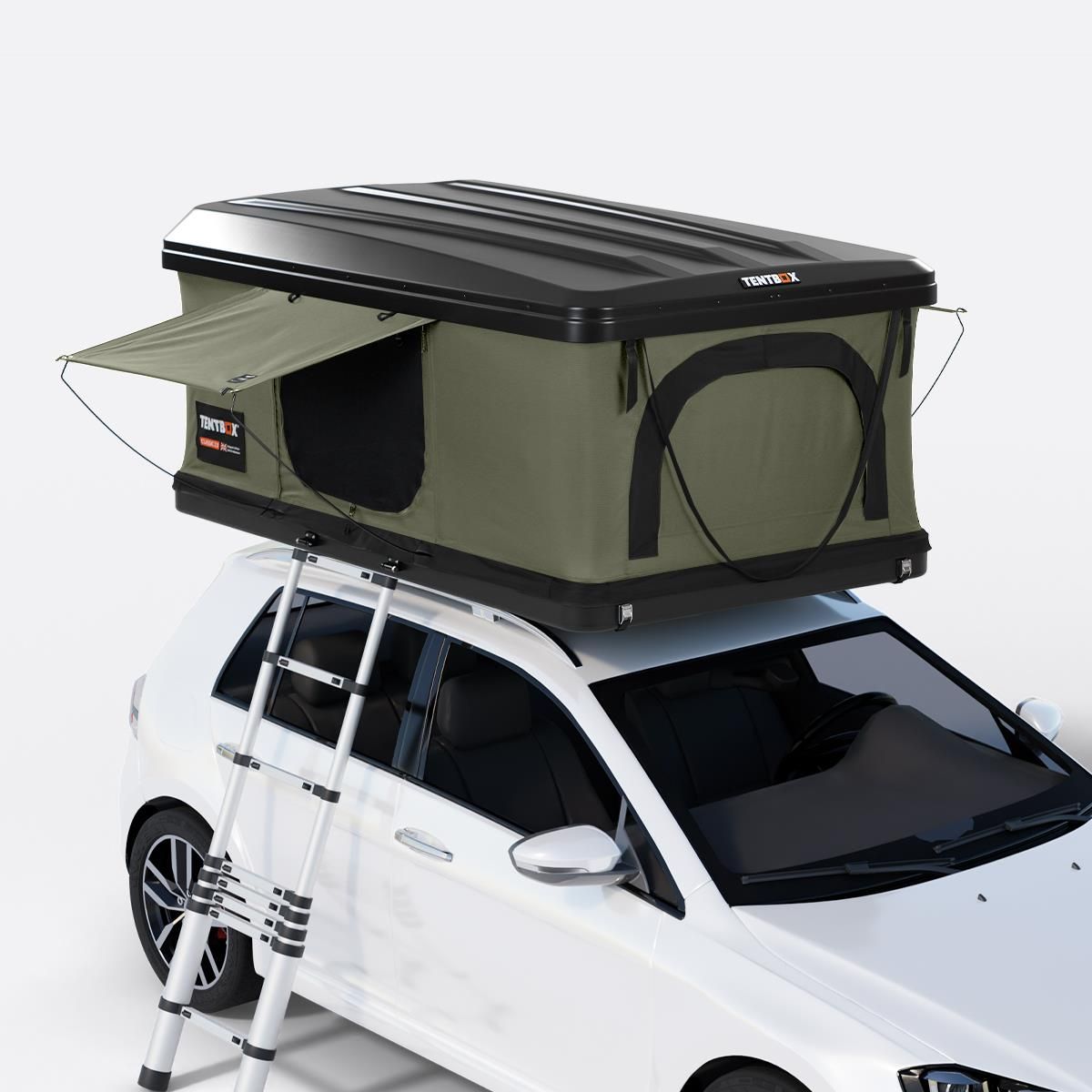

Setting Up the TentBox Classic 2.0 – Fast, Functional and Built for Everyday Touring

The TentBox Classic 2.0 is a hard-shell roof tent designed for users who prioritise speed, comfort, and all-weather protection.
This guide explains installation, setup, interior layout, and care, giving a full understanding of how the Classic 2.0 performs in everyday use.

Installation and Mounting

The Classic 2.0 attaches to most standard or aftermarket roof bars using the supplied mounting brackets.
Before installation, ensure:

• Roof bars are rated for a dynamic load of at least 75 kg.

• Cross-bar spacing allows a flat, stable mount (recommended 70–90 cm).

• All fixing plates sit flush and bolts are tightened evenly.

The tent can remain fitted year-round. The ABS hard shell and stainless-steel hardware are corrosion-resistant, with rubber seals to protect against rain and road dust.

Setup Process

The Classic 2.0 opens in around 60 seconds.

1. Release the exterior latches.

2. Allow the gas-assist struts to raise the upper shell automatically.

3. Extend the telescopic ladder and secure its base on stable ground.

4. Adjust windows, vents, and the entrance canopy as required.

No poles or separate framework are needed; the integrated structure supports itself once opened.

Interior and Layout

The sleeping platform accommodates two adults, offering a flat surface with a high-density foam mattress.
An internal USB light bar provides ambient illumination, and multiple mesh windows ensure effective ventilation.
Storage pockets line both sides for small equipment, while an internal elastic net under the roof allows lightweight gear or clothing to be suspended overhead.

The Classic 2.0’s rigid shell creates more internal headroom than many clamshell tents, giving space to sit upright comfortably.

Build and Materials

• Outer shell: ABS with internal aluminium reinforcement.

• Fabric: 280 gsm ripstop poly-cotton, waterproof and UV-resistant.

• Mattress: Dual-layer foam with removable cover.

• Seals: Automotive-grade rubber for weatherproof closure.

This combination ensures strength, insulation, and minimal noise during travel.

Weather and Temperature Performance

The Classic 2.0 is suitable for year-round use.
The poly-cotton fabric provides effective breathability in warm conditions while retaining warmth in cooler climates.
Water resistance is maintained by the overlapping shell edges, which prevent water ingress during heavy rain.
Optional insulation liners are available for extended cold-weather trips.

Storage and Maintenance

Before storage, ensure the tent is completely dry inside.
Wipe down the shell with mild detergent and water; avoid abrasive cleaners.
Check struts, bolts, and ladder fittings every few months to maintain performance.
Lubricate hinges and seals lightly with silicone spray to prevent stiffness.

Summary

The TentBox Classic 2.0 combines quick setup, robust materials, and all-season reliability.
Its self-supporting hard-shell design provides consistent comfort and protection, making it an excellent choice for regular travellers seeking efficiency and simplicity.

for manufacturers installation guide see here TentBox
